【BTA Pavilion】德国展团系列——Dlubal Software GmbH

来源：http://www.bicchina.com.cn

2016上海国际建筑工业化展览会（BIC 2016）同期活动，BetonTage asia 2016 上海国际建筑工业化峰会将于2016年11月14日至15日在上海卓美亚喜玛拉雅酒店隆重举行。　　Welcome to BetonTage asia 2016 Shanghai International Building Industrialization Congress.Date: November14th & 15th, 2016
Venue: Jumeirah Himalayas Hotel, Shanghai, China
Scale: 500



本届会议，除了传统的BetonTage asia峰会之外， 更将于展会现场打造全新的BTA Pavilion（德国展团），建筑机械设备企业MBK Maschinenbau、著名建筑设计软件Dlubal Software、IDAT、全球工业自动化和信息化领域的领导品牌Unitechnik集团以及众多海外知名品牌将携手展示最新技术及前沿产品！
Along with the traditional BetonTage asia, we will bring you the brand-new BTA Pavilion this year.The pavilion will feature some top names in Germany concrete precast industry include MBK Maschinenbau、Dlubal Software、IDAT、Unitechnik Group and other famed brands.All these exhibitors will bring their latest technology and products.BTA Pavilion will landing at BetonTage asia this November. Head over to Shanghai New International Expo Center on Nov. 14-15th and feel an extraordinary technical journey.

本期BIC将继续推出BTA Pavilion
参展代表团Dlubal Software GmbH



展位号：N2D12-B1
Booth Number：N2D12-B1

关于DlubalAbout Dlubal：

“结构分析与设计软件，让工作更有乐趣”



总部位于德国和捷克的 Dlubal 软件公司开发有限元和结构分析与设计软件已经超过 25 年。全球拥有超过 6000 家公司客户以及 25000 个用户在 71 个国家满意的使用 Dlubal 软件。　　我们的分公司分别设立在德国周边例如法国、意大利、波兰、捷克等欧洲国家和美国。Dlubal Software 在 2016 年已经成功的通过了 ISO 9001 质量管理体系认证。



“Enjoy Structural Analysis with Dlubal Software”
For more than 25 years, the German-Czech company Dlubal Software develops engineering programs for FEA and structural analysis. More than 6,000 companies and 25,000 satisfied users in 71 countries use the Dlubal Software programs successfully every day.　　Dlubal Software has branch offices in Germany, France, Italy, Poland, in the Czech Republic and the USA. Since 2016, Dlubal Software is certified according to ISO 9001.

项目案例Customer Project：
♢　宁波罗蒙环球乐园云霄飞车“传奇飞龙”

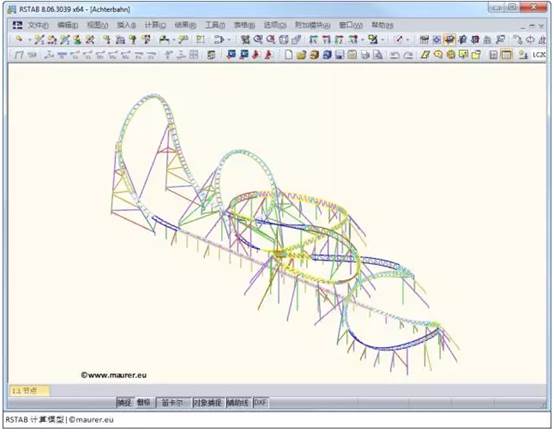

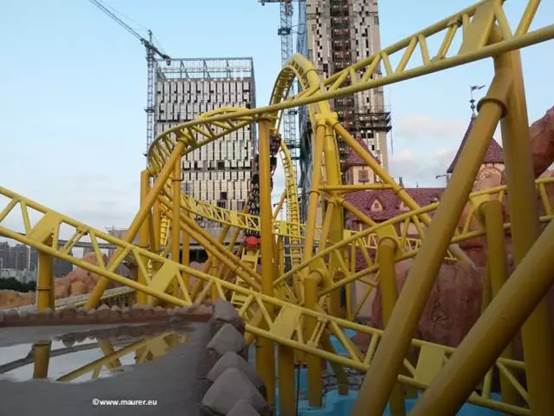

该建筑的长宽高分别约为 113 米、51 米和 30 米。整体结构共由 86 种不同截面的 6201 根钢管组成。该工程项目的设计计算采用了 RSTAB 和附加模块 RS-COM。对轨道结构分别按照中国和欧洲规范进行了承载能力极限状态设计和疲劳设计，并在计算完成后生成了非常直观的结果模型效果图。



Dragon Flight, X-Train Flying Launch Coaster in Ningbo, China
The base area is 113 m × 51 m. At the highest point of the coaster ride, which is called the top hat, a vertex height of approximately 30 m is reached. The overall structure consists of a tubular structure with 6,201 members and 86 cross sections.The rail structure was calculated in RSTAB. Both model and wheel loads were directly imported from the dynamic simulation by using RS COM.

♢　瑞士达沃斯洲际酒店



该钢筋混凝土建筑的长宽高分别约为 119 米、74米和55米，外形酷似一枚金色的鸡蛋。其结构模型由 3,232 个节点、638 根杆件、652 个面、29,505 个有限元单元和 77 种截面组成。该工程项目的静力和抗震设计计算采用了 RFEM 以及动力分析附加模块 RF-DYNAM Pro。



In December 2013, a hotel with extraordinary architecture was opened in Davos. The building has the shape of a "Golden Egg" and is situated on a mountainside. The hotel is elliptic in shape with all corners rounded out. It was constructed with reinforced concrete and its external dimensions are about 105 m x 40 m.

♢　德国巴伐利亚国家森林公园木塔结构树顶走道

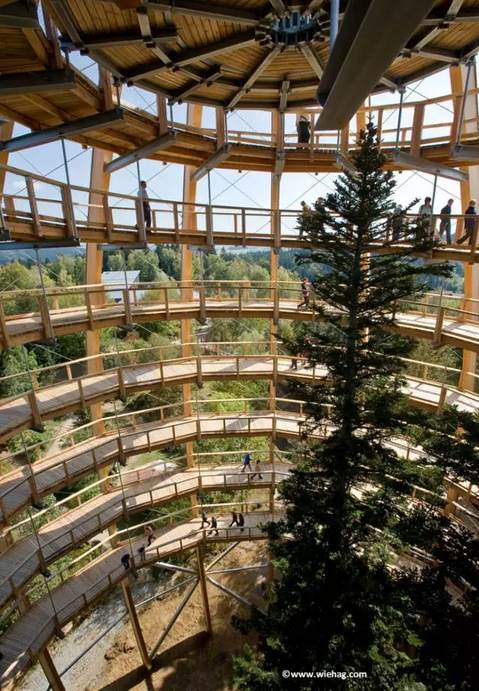

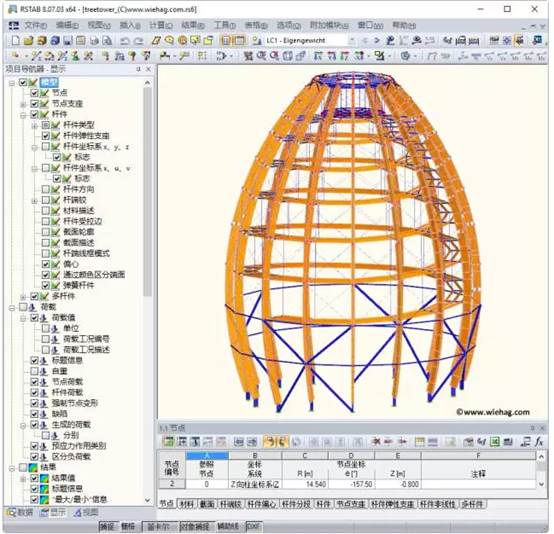

该蛋形木塔结构树顶走道高 44 米，其螺旋形坡道长度为 520 米。该塔的主要支承结构由16 个旋转对称排列的弧形层板胶合木柱构成。上层柱间采用钢支撑斜杆，底层柱间采用 4 个抗拉及抗压的空心型钢十字交叉支撑。木螺旋坡道通过钢悬臂梁和拉杆固定在木柱上。该工程项目的设计计算采用了 RSTAB 以及相关附加模块TIMBER、STEEL、RSBUCK、DYNAM。

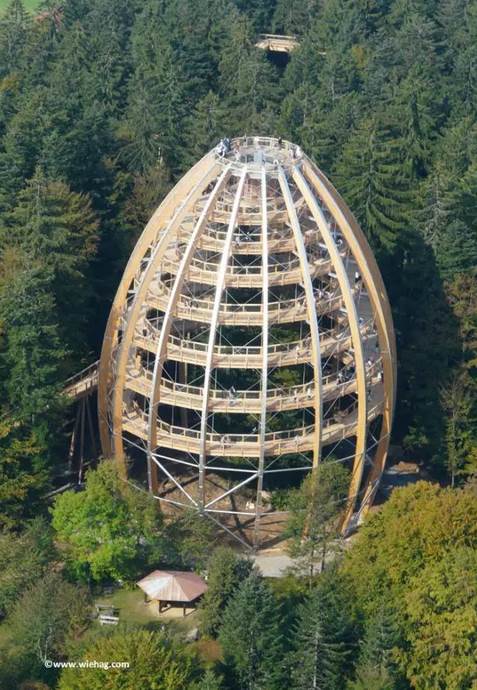

The egg-shaped tree tower was built around three trees with a height of up to 38 m, growing on a rock formation.The path leading through forest tree-tops has a total length of 1,300 m and is the longest tree-top walk worldwide. It was built in 2009 in the Bavarian Forest National Park in Germany. The walk's principal magnet of tourism is the walkable tree tower with a height of 44 m. It consists of a spiral structure with a length of 520 m, directly connected to the 780 m long tree-top walk.



♢　阿拉伯联合酋长国法拉利世界主题公园

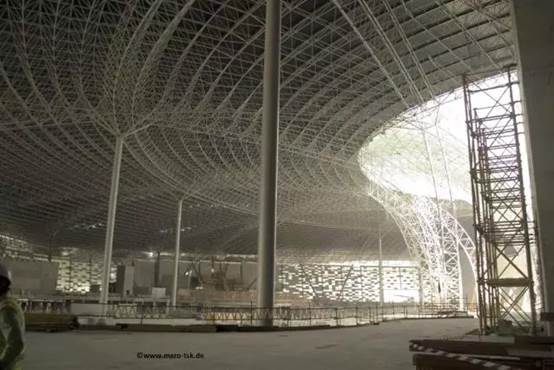

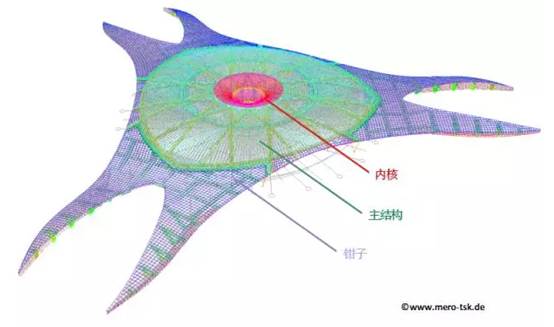

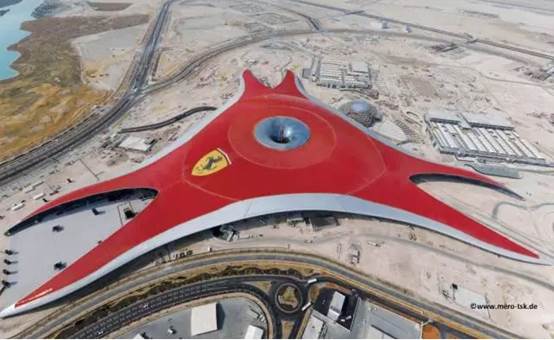

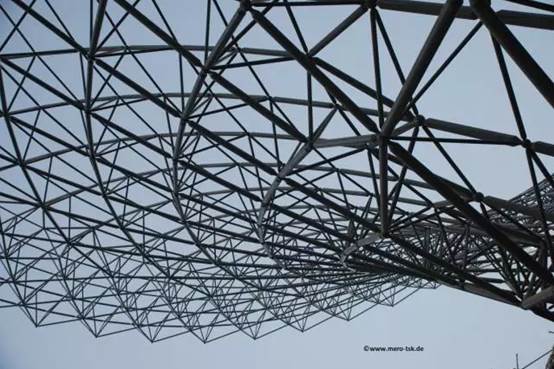

该主题公园被一个巨大的红色屋顶覆盖，整个钢结构屋顶表面约 195,000 m²，采用美露空间框架结构，总计由 17 万根杆件和约 42,200 个节点构成。整个结构被分成内核、主结构和钳子三个子结构分别进行建模。该工程项目的设计计算采用了 RSTAB 和附加模块 RS-COM。



On Al Yas Island, the biggest natural island of the United Arab Emirates, the Ferrari World Theme Park is currently under construction as an amusement and leisure facility.
According to the design concept of Benoy, it will include a Formula 1 fitted circuit, a shopping mall of the size of 300,000 m², condominiums, marinas and also several luxury hotels and two golf courses.The Ferrari World Theme Park is covered by a vast roof. The entire roof structure with a surface of about 195,000 m² consists of a MERO spatial framework.With a total number of about 170,000 members and 42,200 joints, it is the largest spatial framework ever built.


产品Product
♢　有限元结构分析程序 RFEM



有限元程序 RFEM 可以快速并且简单的建模，然后对含有杆件、板、墙、折板、壳和体单元的 2D 以及 3D 模型进行计算和设计。　　正是由于是模块化软件系统，基础程序 RFEM 以及其附加模块能根据用户需要定制个性化的程序包。　　
RFEM是一款易于操作、功能强大的有限元分析软件。可以对由杆件、板、墙、壳、折板和实体构成的二维和三维结构进行静力与动力分析。适用于各种专业领域。　　
RFEM - FEM Structural Analysis Software
The finite element analysis program RFEM is a powerful software for quick and easy modeling, structural analysis and design of 2D and 3D models consisting of member, plate, wall, folded plate, shell, solid, and contact elements.Due to the modular software concept, you can connect the main program RFEM with the corresponding add on modules in order to meet your individual requirements.

♢　杆件结构分析软件 RSTAB



结构分析程序 RSTAB 为工作难度要求高的结构工程师在设计复杂杆件结构时提供了一个不可缺少的工具。是一款专注于平面和空间杆件结构的静力与动力分析计算软件，其包含功能与 RFEM 相似。适用于各种专业领域。
用户可以使用 RSTAB 简单快速的建立结构模型然后计算内力、变形以及支座反力，随后的结构设计工作则是在考虑材料因素以及规范规定的特殊要求后由附加模块计算完成。　　
The 3D structural frame analysis program RSTAB is the ideal tool for the design of beam, frame, or truss structures consisting of steel, reinforced concrete, timber, aluminum, or other materials.　　With RSTAB you can easily and quickly define a structural model and then calculate the internal forces, deformations, and support reactions. For further design, there are various add on modules available, considering structural data of specific materials and standards.
